• 3.73 rear axle ratio (w/28_ or 2F_ CPOS Pkg REQ: WLA Dual Rear Wheels)
• Electronically-controlled throttle
• Tip start ignition
• Electronic shift-on-the-fly transfer case
• Anti-spin rear axle differential
• 11.5" rear axle ring gear diameter
• Four wheel drive
• 730-amp maintenance-free battery
• 160-amp alternator
• 8' pickup box
• Spray-in bedliner
• Class V receiver hitch
• Trailer tow wiring -inc: 4-pin connector
• 7-pin trailer wiring harness
• Trailer brake control
• Tow hooks
• 11300# GVWR
• HD front shock absorbers
• HD rear shock absorbers
• Front stabilizer bar
• Pwr steering
• Pwr 4-wheel anti-lock disc brakes
• Diesel exhaust brake

• 20" x 8" polished aluminum wheels (N/A w/WLA Dual Rear Wheels)
• LT285/60R20E on-/off-road OWL tires (N/A w/WLA Dual Rear Wheels)
• Full size spare tire
• Single rear wheels
• Center wheel hubs
• 18" steel spare wheel
• Winch-type spare tire carrier
• Painted front bumper
• Painted rear bumper
• Front bumper sight shields
• Front air dam
• Accent-color fender flares
• Dual rear wheel fender flare tracking
• Wheel-to-wheel side steps (N/A w/WLA Dual Rear Wheels)
• Bright grille
• Body-color headlamp filler panel
• Auto headlamps
• Quad headlamps
• Bi-function halogen projector headlamps
• Auto high beam headlamp control
• Fog lamps
• Underhood lamp
• Cargo lamp
• Premium tail lamps
• Chrome pwr trailer tow mirrors w/memory -inc: supplemental signals, courtesy lamps, heated glass
• Tinted windshield glass
• Tinted glass windows
• Pwr sliding rear window
• Rain sensitive windshield wipers
• Front license plate bracket
• Locking tailgate
• Body-color/chrome door handles

• Uconnect 8.4AN -inc: AM/FM stereo, SiriusXM traffic w/1-year Travel Link & 1-year realtime traffic service, 8.4" touch screen display, GPS antenna input, GPS navigation, HD Radio, media hub (SD/USB/aux input), rearview mirror w/microphone, remote SD card slot, roadside assistance & 911 calling, Uconnect Access Advantage, Uconnect Access via mobile, Uconnect voice command w/Bluetooth®

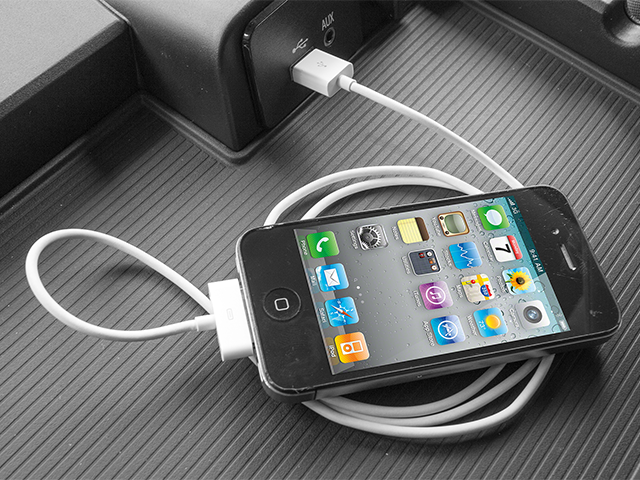

• Media hub -inc: SD card reader, remote USB port, aux input jack
• SiriusXM satellite radio -inc: 1-year service
• (9) amplified speakers w/subwoofer
• Fixed long mast antenna

• Premium leather trimmed bucket seats
• 10-way pwr driver/6-way pwr front passenger seats -inc: driver seat memory
• Dual pwr lumbar adjusters
• Heated/ventilated front seats

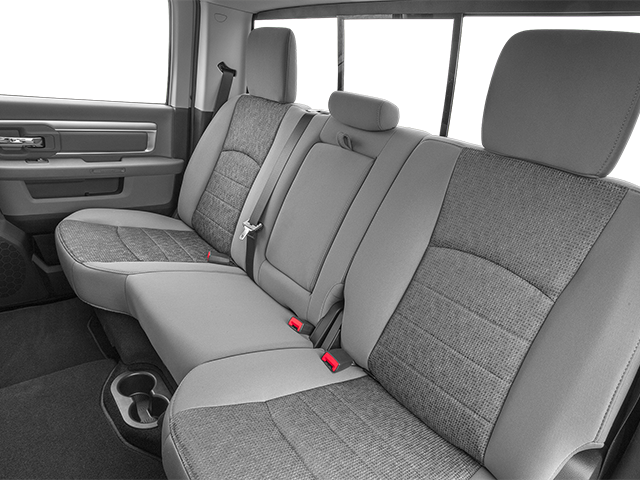

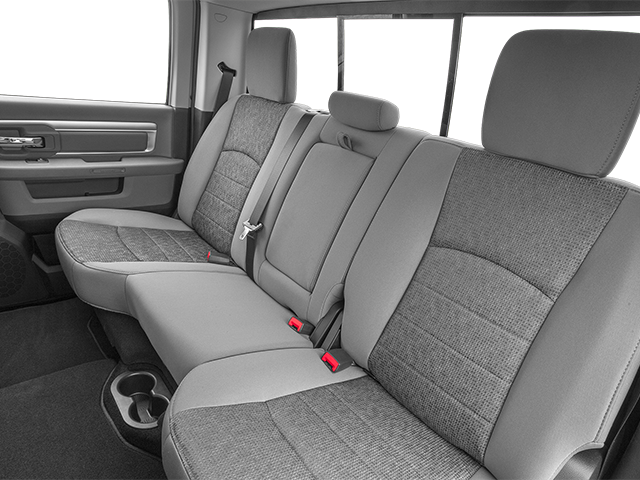

• Rear 60/40 split-folding bench seat
• Heated 2nd row seats
• Folding flat load storage
• Carpeted floor covering
• Luxury front/rear floor mats
• Mopar bright door entry guards

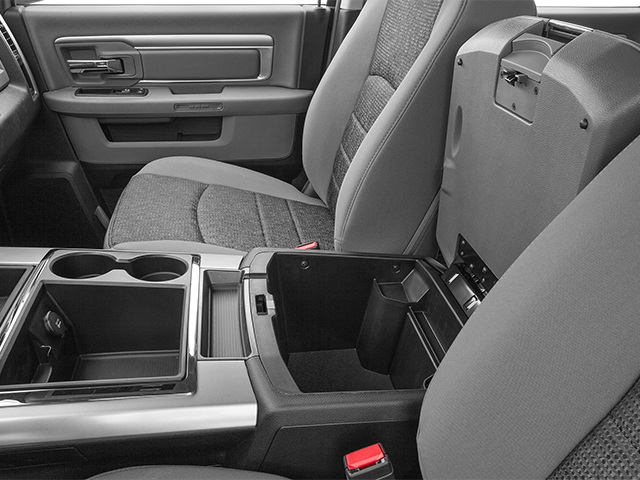

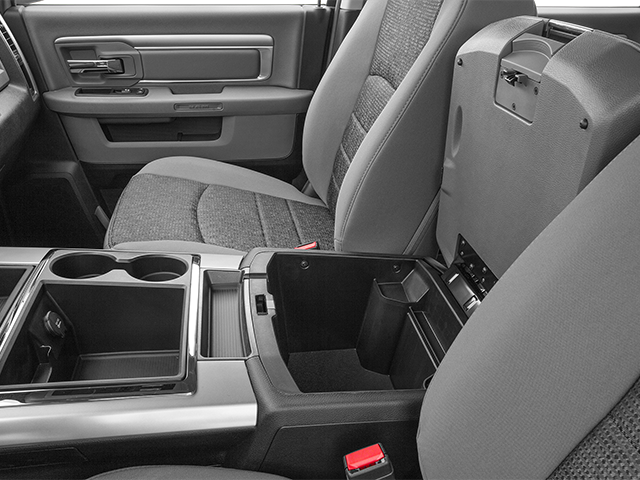

• Premium floor console

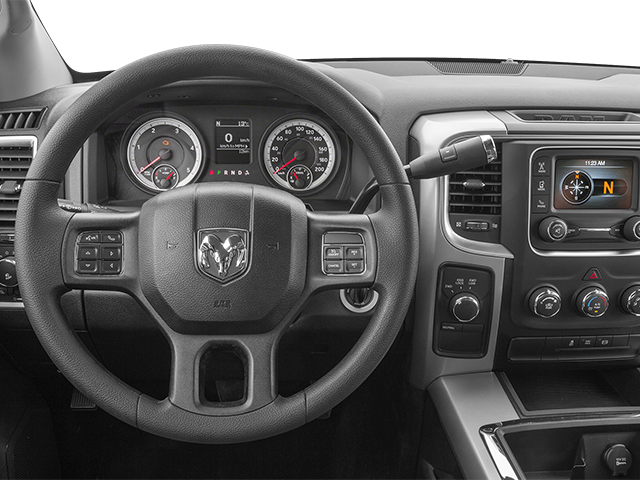

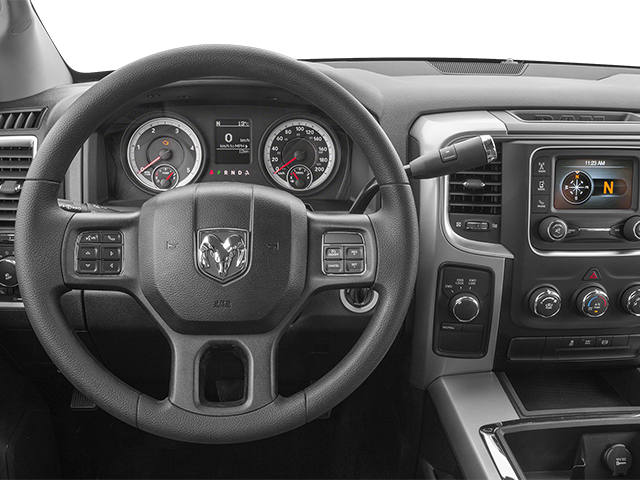

• Wood/leather-wrapped steering wheel
• Heated steering wheel
• Steering wheel audio controls
• Tilt steering column
• Sentry Key theft-deterrent system
• Unique Limited instrument cluster
• Vehicle info center
• 120-MPH primary speedometer
• Traveler/mini trip computer
• Outside temp gauge & compass

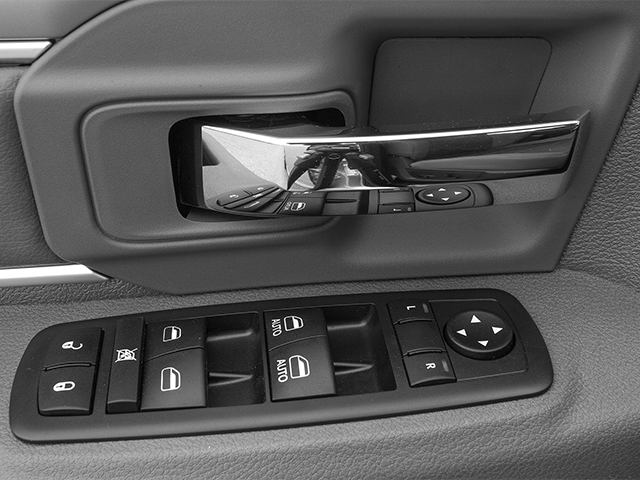

• Pwr windows w/front one-touch up/down
• Pwr accessory delay
• Pwr locks
• Keyless Go
• Remote proximity keyless entry
• Speed control
• Security alarm
• Memory feature for stereo, driver seat, exterior mirrors & pedals
• Pwr adjustable pedals w/memory
• Remote start system
• Auto air conditioning w/dual-zone temp control
• 12V auxiliary pwr outlet
• 115V auxiliary pwr outlet
• Limited decor group
• Luxury door trim panel
• Auto-dimming rearview mirror w/microphone
• Overhead console w/universal garage door opener
• Driver/passenger assist handles
• Dual illuminated visor vanity mirrors
• Rear dome lamp w/on/off switch
• LED interior lighting
• Rear door accent lighting

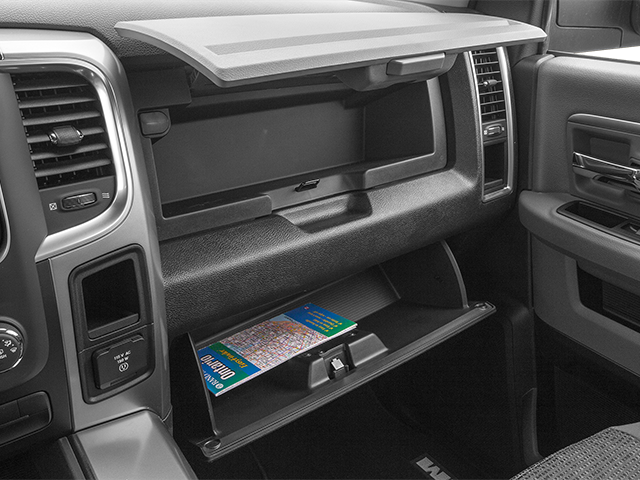

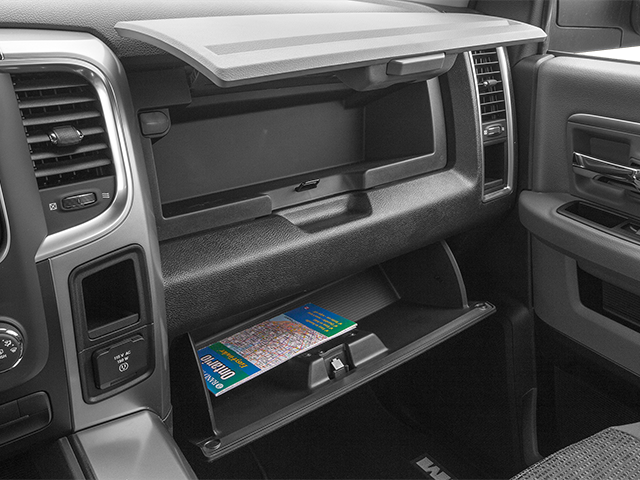

• Glove box lamp
• Leather-wrapped shift knob
• Woodgrain instrument panel bezel
• Rear underseat compartment storage
• 2nd row in-floor storage bins

• Electronic stability control
• Advanced multistage front airbags
• Supplemental side airbags
• Supplemental front seat side airbags
• Child safety door locks
• Front/rear side curtain airbags
• ParkView rear back-up camera -inc: rearview auto-dimming mirror w/display
• ParkSense rear park assist system
• Front height-adjustable shoulder belts
• Dual-note horn

SINGLE REAR WHEELS

• (STD)

2FM LIMITED EDITION CUSTOMER PREFERRED ORDER SELECTION PKG

• 6.7L I6 turbo-diesel engine
• 6-speed auto trans
• 3.42 axle ratio
• 20" x 8" polished aluminum wheels
• auto-high beam headlamp controls
• Keyless Go
• luxury door trim panel
• luxury front/rear floor mats
• monotone paint
• painted front bumper
• painted rear bumper
• dual pwr lumbar adjust
• premium leather bucket seats
• 10-way pwr driver seat w/memory
• 6-way pwr passenger seat
• rain sensitive windshield wipers
• Rambox cargo management system
• remote proximity keyless entry
• ventilated front seats
• wheel-to-wheel side steps
• wood/leather-wrapped steering wheel

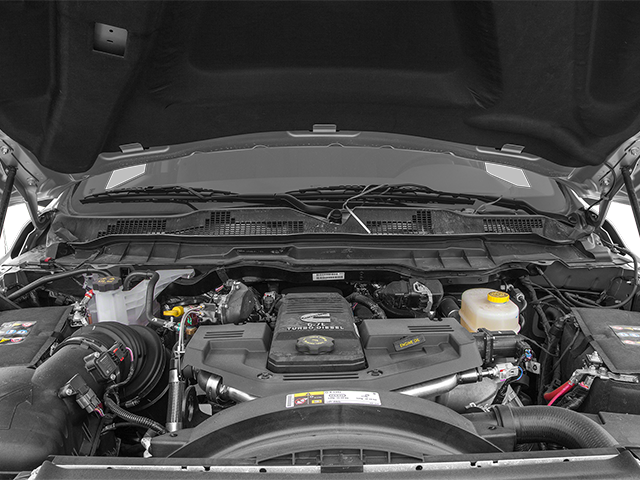

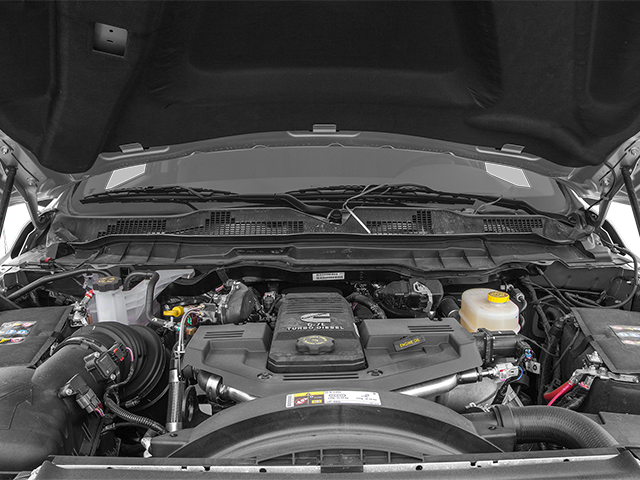

6.7L I6 CUMMINS TURBO-DIESEL ENGINE

• 180-amp alternator
• 28-gallon fuel tank
• diesel exhaust brake
• 12
• 300 lb GVWR
• selective catalytic reduction (urea)
• current generation engine controller

20" X 8" POLISHED ALUMINUM WHEELS

• (STD)

PROTECTION GROUP

• transfer case skid plate shield

LT285/60R20E ON-/OFF-ROAD OWL TIRES

• (STD)

• Quick Order Package 2FM Limited
• 3.42 Rear Axle Ratio
• Wheels: 18 x 8.0 Aluminum White Gold
• 20 x 8.0 Polished Aluminum Wheels
• Premium Leather Bucket Seats
• Premium Leather-Trimmed Bucket Seats
• 180 Amp Alternator
• Convenience Group
• Keyless Enter-N-Go
• Luxury Group
• Protection Group
• Radio: Uconnect 8.4AN AM/FM/BT/Access/NAV
• Wheel to Wheel Side Steps
• RamBox Cargo Management System
• Transfer Case Skid Plate Shield
• Bucket Seats
• High Back Seats
• Ventilated Front Seats
• Heated Front Seats
• Rear 60/40 Split Folding Seat
• Folding Flat Load Floor Storage
• Remote Proximity Keyless Entry
• Rain Sensitive Windshield Wipers
• 115V Auxiliary Power Outlet
• Power Lumbar Adjust
• Heated Second Row Seats
• Power 10-Way Memory Driver & 6-Way Passenger Seats
• Auto High Beam Headlamp Control
• Rear Wheel Spats
• Front Bumper Sight Shields
• Transmission Oil Cooler
• Electronically Controlled Throttle
• Heated Steering Wheel
• Center Hub
• Tip Start
• Instrument Cluster
• Limited Badge
• Limited Decor Group
• Luxury Door Trim Panel
• Luxury Front & Rear Floor Mats
• Painted Front Bumper
• Painted Rear Bumper
• Wood/Leather Wrapped Steering Wheel
• 4-Wheel Disc Brakes
• Exterior Parking Camera Rear
• AM/FM radio: SiriusXM
• Front Center Armrest w/Storage
• Compass
• 10 Speakers
• Auto-dimming Rear-View mirror
• Ventilated front seats
• Variably intermittent wipers
• Turn signal indicator mirrors
• Trip computer
• Traction control
• Tilt steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear step bumper
• Rear seat center armrest
• Radio data system
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Pedal memory
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Memory seat
• Leather steering wheel
• Illuminated entry
• Heated steering wheel
• Heated rear seats
• Heated front seats
• Heated door mirrors
• Genuine wood door panel insert
• Genuine wood dashboard insert
• Garage door transmitter
• Fully automatic headlights
• Front reading lights
• Front fog lights
• Front dual zone A/C
• Front anti-roll bar
• Emergency communication system
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• Brake assist
• Automatic temperature control
• Audio memory
• Alloy wheels
• Adjustable pedals
• ABS brakes
• Voltmeter
• Tachometer
• Navigation System
• Front Bucket Seats
• Electronic Stability Control
• Bedliner
• Air Conditioning

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 180
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5500
• Gross Axle Wt Rating - Rear (lbs): 6200
• Gross Axle Wt Rating - Rear (lbs): 9350
• Curb Weight - Front (lbs): 4732
• Curb Weight - Front (lbs): 4769
• Curb Weight - Rear (lbs): 2843
• Curb Weight - Rear (lbs): 3186
• Gross Vehicle Weight Rating Cap (lbs): 10300
• Gross Combined Wt Rating (lbs): 17000
• Gross Combined Wt Rating (lbs): 21000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9250
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13250
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8900
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1388
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1988
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1335
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1935
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Live axle
• Suspension Type - Rear: Live axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): 6010
• Axle Capacity - Rear (lbs): 9350
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.17 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 14.09 x 1.34
• Tires
• Front Tire Order Code: TEA
• Rear Tire Order Code: TEA
• Spare Tire Order Code: TBB
• Front Tire Size: LT285/60R20E
• Rear Tire Size: LT285/60R20E
• Spare Tire Size: 18"
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 20 x 8.0
• Rear Wheel Size (in): 20 x 8.0
• Spare Wheel Size (in): 17 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.0
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 169.0
• Length, Overall w/o rear bumper (in): 259.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 78.3
• Overhang, Front (in): 39.9
• Overhang, Rear w/o bumper (in): 48.7
• Front Bumper to Back of Cab (in): 152.0
• Cab to Axle (in): 56.7
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 7.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 74.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.2
• Second Head Room (in): 39.9
• Second Leg Room (in): 40.3
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 63.2
• Summary
• Vehicle Name: Ram 3500
• Body Style: Crew Cab Pickup
